Characteristics:
3528led lamp beads have the advantages of high lumen, stable performance,
good color consistency and high cost-performance ratio, and are suitable for various led lighting products.
The main parameters:
Model | Color | Temperature(K) | Lumen | Power | Forward voltage | (mA) Current | CRI |
GW-3528SMD LED | White | 2800-7000 | 7-8LM | 0.1W | 2.8-3.1 | 30 | 70,80,90 |
Applications:
Applicable Industry: Fluorescent Lamp, Panel Lamp, Ball Bulb Lamp, soft lamp strip, hard lamp strip
Applicable equipment: stage lighting equipment, lighting equipment, LED lamp repair equipment
Applicable occasions: high-end specialty stores, shopping malls, entertainment places, bars, cafes, hotels

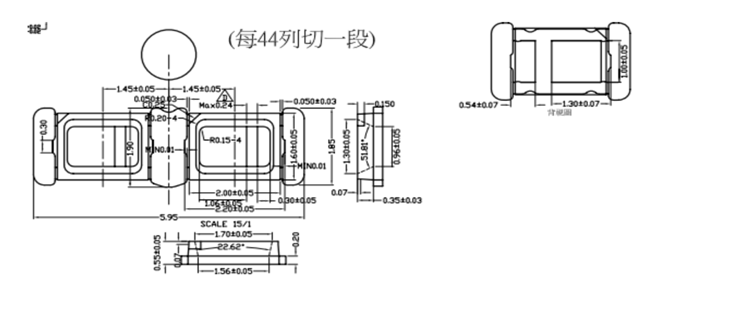

Structural drawing:
Our Service
--If you have any questions, please feel free to contact us. We will response within 24 hours.
--Design charge is always free.
FAQ
Q1: What’s the MOQ?
A1: 10pcs/20pcs/50pcs. Sample request is acceptable.
Q2: What’s the lead time?
A2: Based on the quantity of the order.
Q3: Is it ok to make our own brand name?
A3: That’s fine to make your brand name. OEM&ODM is available.
Q4: What are the payment terms?
A4: T/T, Western Union, L/C.
Q5: Where is your loading port?
A5: Guangdong, Ningbo, Shanghai. According to customer’s requirements.
