Product features：
3014 LAMP BEAD is a type of surface led light-emitting diode. It is a 3.0(width) × 1.4(height) mm LED bulb.
3014led lamp bead size is small, light, thin, the direction of development of light, small line, SMD LED relative to other LED,
thinner, more convenient design. As you can see from the name of 3014, one of the advantages of SMD 3014 is its small size (3.0 x 1.4 mm) ,
compared with ordinary smd lamp beads.
The main parameters:
Model | Color | Temperature(K) | Lumen | Power | Forward voltage | (mA) Current | CRI |
GW-3014SMD LED | White | 2800-7000 | 12-14 LM | 0.2W | 3.0-3.3 | 30 | 70，80，90 |
White | 2800-7000 | 14-16 LM | 0.2w | 2.8-3.1 | 30 | 70，80，90 |
Product description :
1,3014led lamp bead size is small, light, thin, small line of development of lamps and lanterns, smd LED relative to other LED, thinner,
more convenient design. As you can see from the name of 3014, one of the advantages of SMD 3014 is its small size (3.0 x 1.4 mm) , compared with ordinary smd lamp beads.
2.3014 led light bead low fade. Low Thermal Resistance, good thermal conductivity;
3,3014led high brightness up to 10-14LM.
4, low cost, product cost and performance analysis: compared with the market 3528/3020, the number of 3528 more, from the overall cost of lighting, 3014 has an absolute advantage. Therefore, in the LED fluorescent lamp on the thermal conductivity is a better product choice.
5,3014 the biggest characteristic is the heat dissipation performance is good, because of its heat dissipation structure and 3528 different.

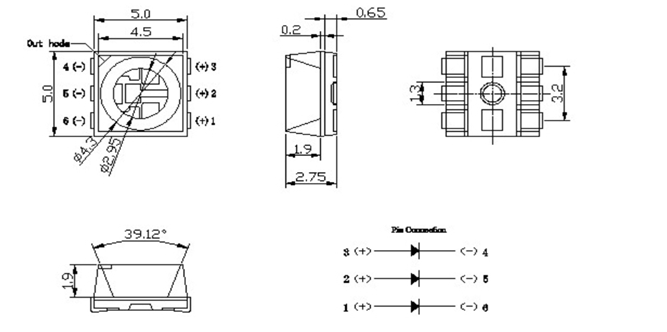

Structural drawing：
Company Information
About Us
Our Advantages
--12 Years Professional Experience in LED Lighting Design.
--Strict Quality Control System and Powerful OEM Capacity from raw materials to finished products.
--Perfect customer service system, customer benefit first forever.
--Pursue Long Term Cooperation, strive for Win-win.
Packaging & Shipping
Our Service
--If you have any questions, please feel free to contact us. We will response within 24 hours.
--Design charge is always free.
FAQ
Q1: What’s the MOQ?
A1: 10pcs/20pcs/50pcs. Sample request is acceptable.
Q2: What’s the lead time?
A2: Based on the quantity of the order.
Q3: Is it ok to make our own brand name?
A3: That’s fine to make your brand name. OEM&ODM is available.
Q4: What are the payment terms?
A4: T/T, Western Union, L/C.
Q5: Where is your loading port?
A5: Guangdong, Ningbo, Shanghai. According to customer’s requirements.
