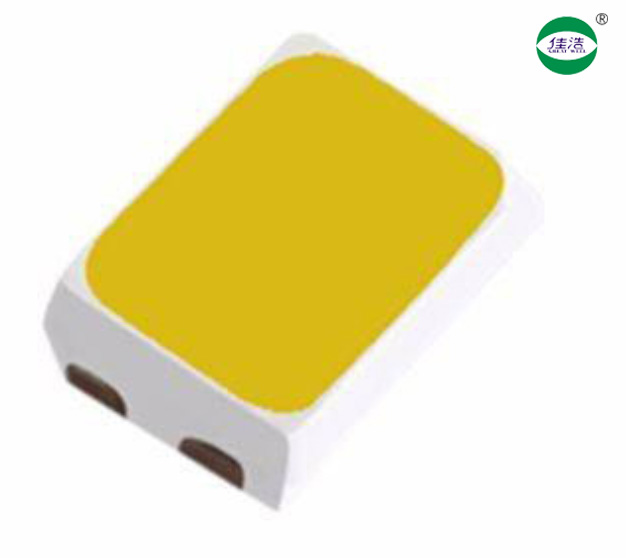

Characteristics：
2016led， the lamp bead has the advantages of high lumen, stable performance, good colorconsistency and high cost performance;
it is suitable for all kinds of ledlighting products.
The main parameters:：
Model | Color | Temperature(K) | Lumen | Power | Forward voltage | (mA) Current | CRI |
GW-2016SMD LED | White | 2800-7000 | 10-12LM | 0.1W | 3.0-3.3 | 30 | 70，80，90 |
GW-2016SMD LED | White | 2800-7000 | 22-26 LM | 0.2w | 3.0-3.3 | 60 | 70，80，90 |
GW-2016SMD LED | White | 2800-7000 | 30-36 LM | 0.3W | 3.0-3.3 | 100 | 70，80，90 |
GW-2016SMD LED | White | 2800-7000 | 45-55 LM | 0.5W | 3.0-3.3 | 150 | 70，80，90 |
PCT material, instead of Samsung
Applications：
2016 LED lamp bead application:
ApplicableIndustry: Fluorescent Lamp, panel lamp, Ball Bulb, soft lamp strip,
hard lampstrip applicable equipment: stage lighting equipment, lighting equipment,
LEDlamp maintenance equipment applicable occasions: high-end exclusive stores,shopping malls, entertainment places, bars, coffee Shops, hotels

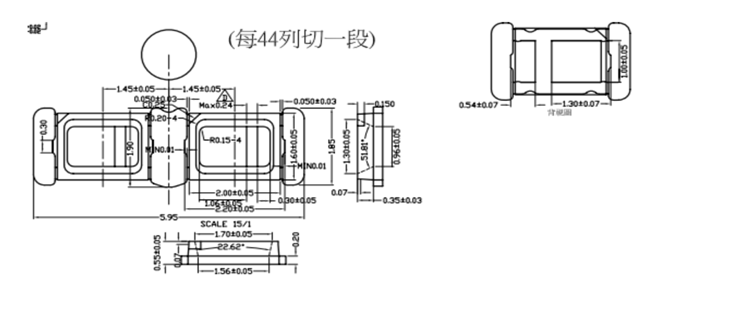

Structural drawing：
Our Service
--If you have any questions, please feel free to contact us. We will response within 24 hours.
--Design charge is always free.
FAQ
Q1: What’s the MOQ?
A1: 10pcs/20pcs/50pcs. Sample request is acceptable.
Q2: What’s the lead time?
A2: Based on the quantity of the order.
Q3: Is it ok to make our own brand name?
A3: That’s fine to make your brand name. OEM&ODM is available.
Q4: What are the payment terms?
A4: T/T, Western Union, L/C.
Q5: Where is your loading port?
A5: Guangdong, Ningbo, Shanghai. According to customer’s requirements.
